Tighten Bolts-Rear Axle

Tighten bolts in the following locations to specifications:

Specification

Rear Axle Rim-to-Disk (Steel Disk) -Torque 245 N·m (180 lb-ft)
Rear Axle Disk-to-Flange (Steel Disk) -Torque 550 N·m (406 lb-ft)

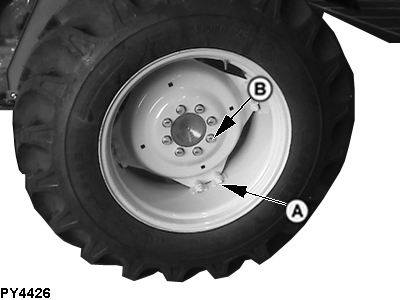

A-Rim-to-disk bolts
B-Disk-to-flange bolts

PY4426

Steel Disk

PY,OMPY0141,118 -19-08JUN99-1/1
