Light Switch Positions

Tractor light switch has five positions:

A- Turns off all lights.

B- Turns on warning lights only. For driving on highway during daytime.

C- Field position, turn on bright front headlights.

D- Turns on bright headlights, tail lights, and warning lights. For highway driving during night time

E- Turns on dim headlights, tail lights, and warning lights. Turn switch to this position before meeting other vehicles.

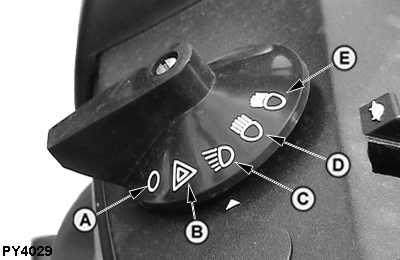

A-Lights Off
B-Warning Lights Position
C-Bright Headlights
D-Bright Headlights, Tail Lights and Warning Lights Position
E-Dim headlights, Tail Lights and Warning Lights Position

PY,OMPY0142,007 -19-21AUG99-1/1
