Tighten Bolts-Adjustable Front Axle

Tighten bolts in the following locations to specifications:

Specification

Adjustable Front Axle-Axle-to-Knee Bolts -Torque 480 N·m (350 lb-ft)
Adjustable Front Axle-Disk-to-Flange Bolts -Torque 210 N·m (155 lb-ft)


A-Axle-to-Knee

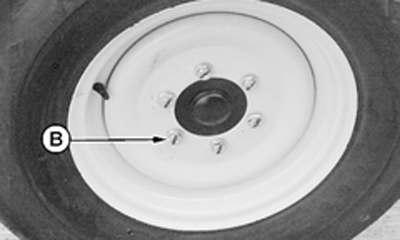

B-Disk-to-Flange

PY5528
PY1487

PU00210,00000F8 -19-26APR06-1/1
