Change Transmission-Hydraulic Oil and Filter

NOTE: The approximate transmission case oil capacity for CollarShift Transmission is 38 L (10 gal)

2. Remove drain plug from transmission case (A) and drain out oil.

3. Replace filter (C) while changing oil. Apply a film of oil to new filter gasket and install new filter. Hand tighten only.

4. Install Drain plug (B) and fill system with transmission-hydraulic oil. (See Fuels, Lubricants and Coolant section.)

Specification

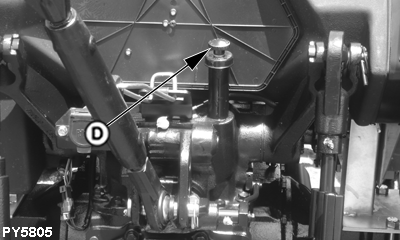

5. Check oil level at dipstick (D) after filling, and again after operating for five minutes.

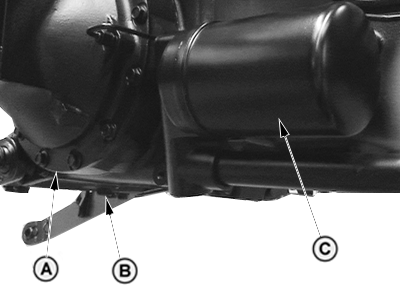

A-Transmission Case
B-Drain Plug
C-Filter
D-Dipstick

PU00210,00001AE -19-19JUN06-1/1
