Check Instruments After Starting

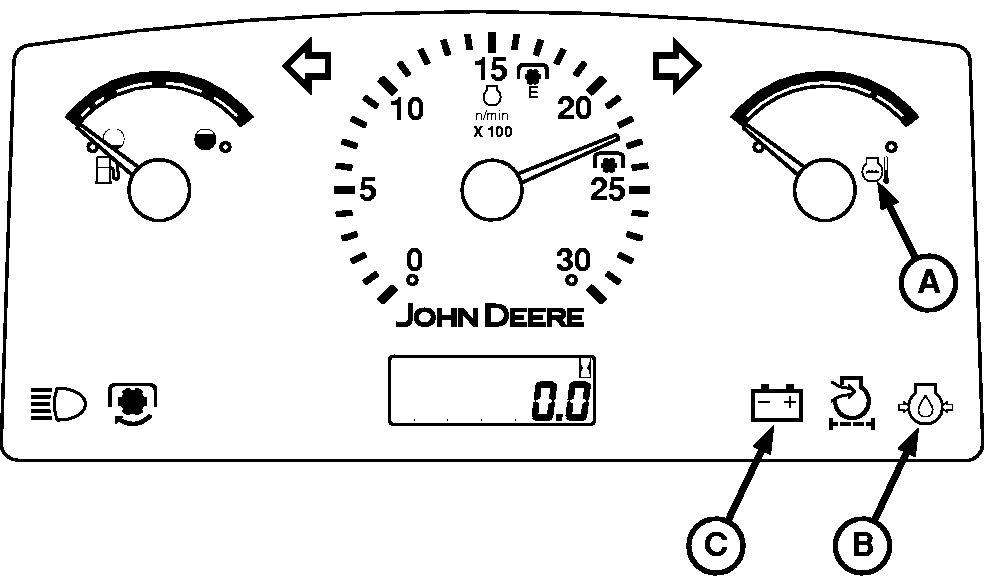

IMPORTANT: If charging system (C) or oil pressure (B) indicators fail to go out, or temperature gauge (A) indicates hot, stop engine and determine the cause.


A-Temperature Gauge
B-Oil Pressure Indicator
C-Charging System Indicator

LV8419

Late Model Shown; Early Model Similar

AG,OUO1043,160 -19-05AUG03-1/1
