Replace Headlight Bulb-Early Model Tractor

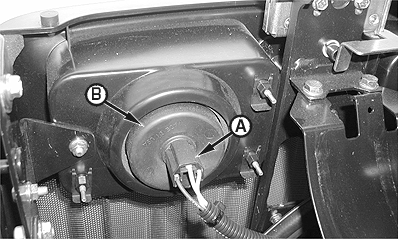

1. Remove headlight connector (A).

2. Remove dust boot (B).


A-Headlight Connector
B-Dust Boot

LV5055

AG,OUO1043,290 -19-14NOV03-1/2

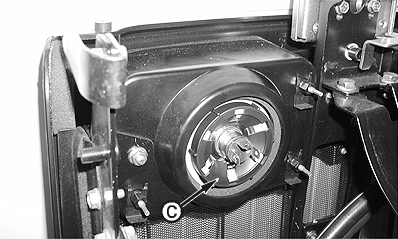

3. Twist collar (C).

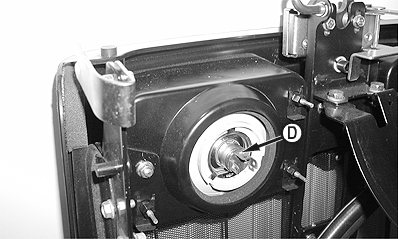

4. Remove bulb (D).

5. Install bulb, collar, seal and connector in reverse order.


C-Collar
D-Bulb

LV5056
LV5057

AG,OUO1043,290 -19-14NOV03-2/2
