Adjusting Rockshaft Rate-of-Drop

CAUTION: Excessive rate-of-drop may cause damage or injury. Fully lowering implement should require at least two seconds.

Rockshaft drops faster when a heavy implement is attached. Adjust rate-of-drop knob so that it is slow enough to be safe and prevent implement damage.

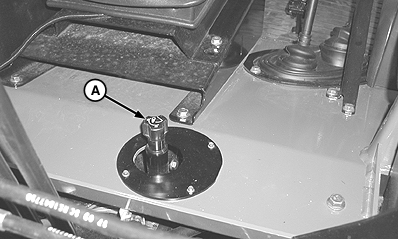

Turn rockshaft rate-of-drop knob (A), located under right-hand rear of seat, clockwise to slow rockshaft drop.

Turn knob counterclockwise to increase rate-of-drop.

A-Rockshaft Rate-of-Drop Knob
