Clean Transmission-Hydraulic Pickup Screen

NOTE: The approximate transmission case oil capacity for CollarShift and SyncShuttle™ Transmission is 38 L (10 gal). The approximate transmission case oil capacity for PowrReverser™ Transmission is 42.5 L (11 gal).

1. Drain transmission-hydraulic oil. (See Change Transmission-Hydraulic Oil and Filter in this section.)

LV,5010S12,B -19-20NOV03-1/3

2. Remove two cap screws (A) and remove pickup screen cover (B).

3. Remove pickup screen (D) and inspect it for damage. Replace if necessary. Clean screen in solvent and blow dry with compressed air.

4. Inspect O-ring (C) for damage. Replace if necessary.

5. Carefully install screen so the front of screen is inserted in hole at front of differential case.

6. Install O-ring, pickup screen cover, and cap screws.

7. Fill system with transmission-hydraulic oil. (See Changing Transmission-Hydraulic Oil and Filter in this section.)

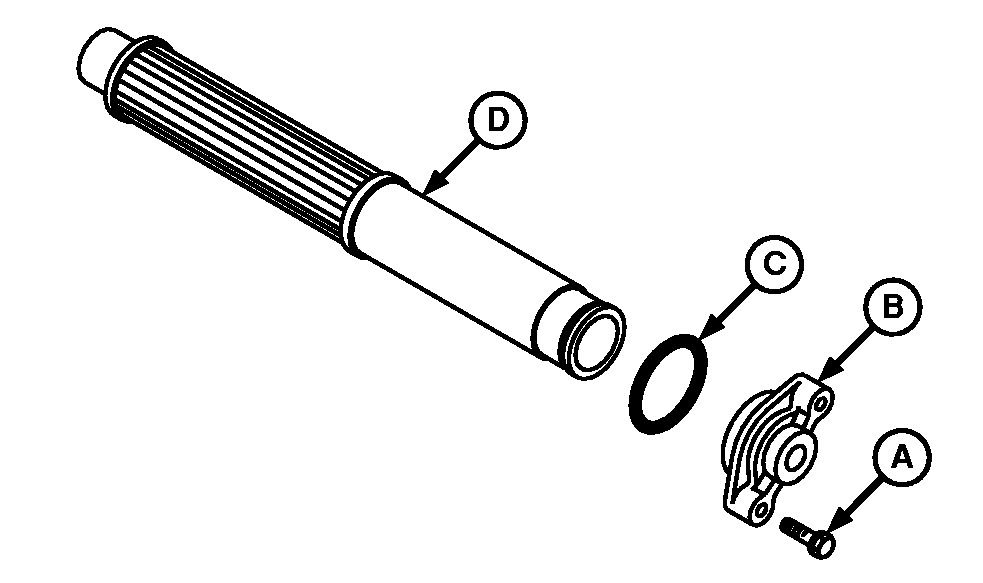

A-Cap Screw (2 used)
B-Pickup Screen Cover
C-O-Ring
D-Pickup Screen

M46986
LV6233

LV,5010S12,B -19-20NOV03-2/3

8. Check oil level at dipstick (A) after filling, and again after operating for five minutes.


A-Transmission-Hydraulic Oil Dipstick

LV6171

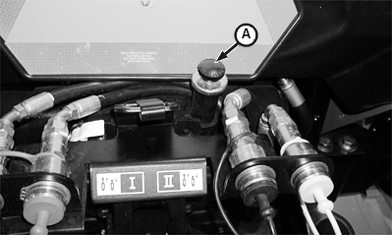

Straddle Mount and Hi-Crop-Early Model Shown; Late Model Similar

LV8523

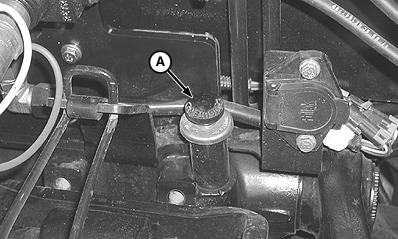

IOOS Shown; Cab Similar

LV,5010S12,B -19-20NOV03-3/3
