Adjusting Headlights

1. Open the hood.

2. Turn screws (A and B) counterclockwise to lower beam or clockwise to raise beam.

3. To adjust beam in toward center of tractor, turn screw (A) counterclockwise and screws (B and C) clockwise an equal number of turns on each screw.

4. To adjust beam out from center of tractor, turn screws (B and C) counterclockwise and screw (A) clockwise an equal number of turns on each screw.

NOTE: Clips (D) need not be removed for adjustment.

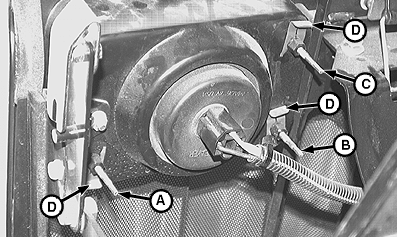

LV3029


A-Headlight Mounting Screw
B-Headlight Mounting Screw
C-Headlight Mounting Screw
D-Clips

LV,5400NSV,A13A -19-10AUG99-1/1
