Lubricate Front Axle Pivot Pin(s)

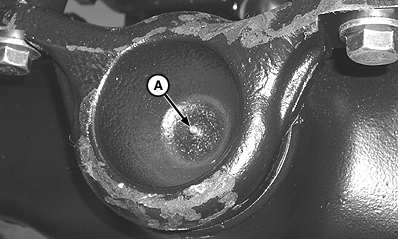

Front of MFWD Axle-Early Model Shown

Front of MFWD Axle-Late Model Shown

Lubricate MFWD axle front pivot zerk (A) and rear pivot zerk (B) with several shots of multipurpose grease.

A-MFWD Front Pivot Lube Fitting
B-MFWD Rear Pivot Lube Fitting

Rear of MFWD Axle-Early Model Shown; Late Model Similar

MX,LMIP,KA3 -19-18NOV03-1/2

Lubricate adjustable axle front pivot zerk (C) and rear pivot zerk (D) (if equipped) with several shots of multipurpose grease. (See Fuels, Lubricants and Coolant section).

C-Adjustable Axle Front Pivot Zerk
D-Adjustable Axle Rear Pivot Zerk

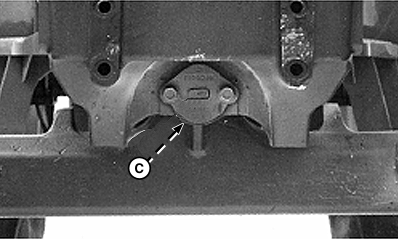

Front of Adjustable Front Axle-Late Model Shown; Early Model Similar

LV8951

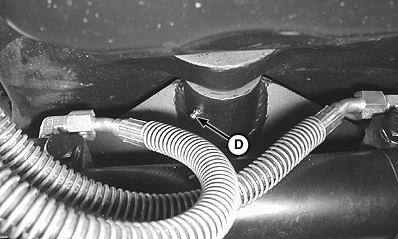

Rear of Adjustable Front Axle-Late Model Shown; Early Model Similar
