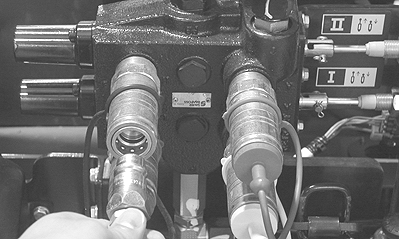

Connecting Hose Under Pressure

IMPORTANT: Implement must be raised slightly, by pulling back on lever to reset coupler check valves, before it can be lowered.

If hose should accidentally pull from tractor during use, clean hose tip and coupler receptacle. Hoses can be reinstalled as previously described with minimal loss of oil. After reinstalling hose connector, extend and retract cylinder to properly seat connector.

MX,RHIP,EA1 -19-05AUG03-1/1
