Adjusting Seat-Air Suspension Seat (Cab) (Optional)

CAUTION: Adjustments to the seat must not be made while driving.

NOTE: Use these instructions as a guideline. Since everybody is different, the final settings must be determined by personal preferences. Each operator should make adjustments that suit them best.

There are five seat adjustments available:

To adjust the seat forward or backward, lift the forward/backward adjustment lever (A), move the seat to the desired position and release lever to lock in position.

Move lever (B) sideways to allow forward/backward suspension or to lock seat in position.

Pull adjustment knob (C) out to raise seat. Push adjustment knob to lower seat. Release knob to lock seat in position.

Lift lever (D) and tilt seat back forward or rearward as desired. Release lever to lock seat back into position.

Turn lumbar support knob (E) to increase or decrease support to lower back.

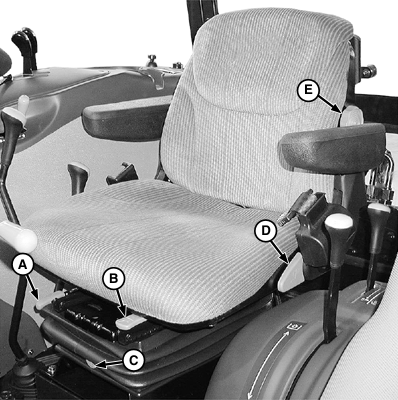

A-Forward/Backward Adjustment Lever
B-Forward/Backward Suspension Lock
C-Air Suspension Adjustment Knob
D-Seat Back Tilt Adjustment Lever
E-Lumbar Support Adjustment Knob

OUO1023,00004B1 -19-17NOV03-1/1
