Light Switch Positions

Tractor light switch has five positions:

A-When the light switch is in the off position, all lights are off.

B-When the light switch is in the warning lights position, only warning lights turn on. This position is for driving on highway during daytime.

C-When the light switch is in the flood lights position, the following lights are on:

• Bright Headlights
• Fender Lights-IOOS and 5520 Straddle Mount and Hi-Crop
• Front and Rear Flood Lights-Cab
• Rear Flood Light-Straddle Mount, IOOS and Hi-Crop

This position is for field use only. Do not use on roads. Flood lights and fender lights might blind or confuse other drivers.

D-When the light switch is in the bright headlights position, the following lights are on:

• Bright Headlights
• Warning Lights
• Tail/Turn Lights

This position is for highway driving during daytime or nighttime. Switch to dim headlight position before meeting other vehicles.

E-When the light switch is in the dim headlights position, the following lights are on:

• Dim Headlights
• Warning Lights
• Tail/Turn Lights

Turn switch to this position before meeting other vehicles.

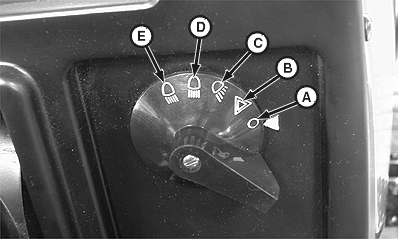

A-Lights Off
B-Warning Lights Position
C-Flood Lights Position
D-Bright Headlights Position
E-Dim Headlights Position

OUO1043,00001CE -19-03NOV00-1/1
