Service Daily Before Start-Up
LV5432

5220 and 5320
LV5433

5220 and 5320

1. Check the engine oil level. Wipe dipstick (A) off and reinsert it fully. Remove and locate oil level.

Safe operating range is between two marks on dipstick. Do not operate engine when oil level is below lower mark on dipstick. Remove engine oil filler cap (B) and add seasonal viscosity grade oil through filler hole. (See Fuel, Lubricants, and Coolant section for oil specifications.)

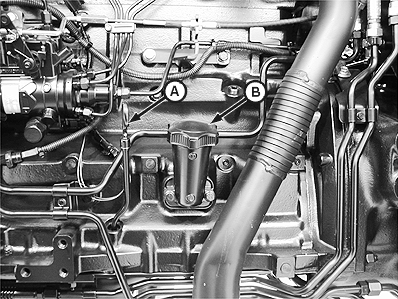

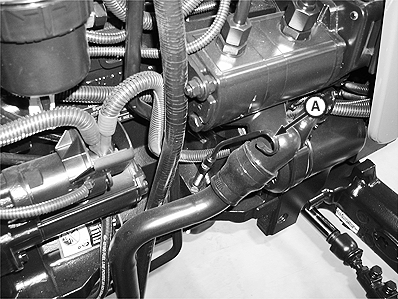

A-Engine Oil Dipstick

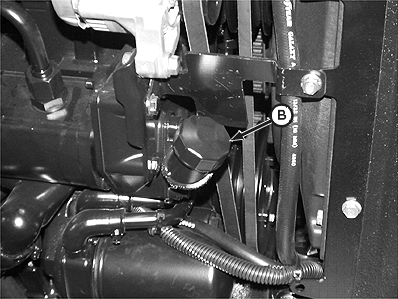

B-Engine Oil Filler Cap

LV5431

5420 and 5520

OUO1043,00001D0 -19-03NOV00-1/2

2. Check coolant level in recovery tank (A). If engine is COOL and level is below COLD FULL mark, add coolant to recovery tank to bring level to COLD FULL mark.

NOTE: Coolant level with a cold engine should be at the COLD FULL mark. A tractor at operating temperature should have a coolant level at the HOT FULL mark.

3. Lubricate the following items at 10 hour intervals if operating in extremely wet or muddy conditions.

  • Front axle pivot pin(s)
  • Steering spindles-adjustable front axle
  • King pins-MFWD
  • Tie rod ends

Use multipurpose grease. (See Fuels, Lubricants, and Coolant section for grease specifications.)

For detailed information see Lubrication and Maintenance section.

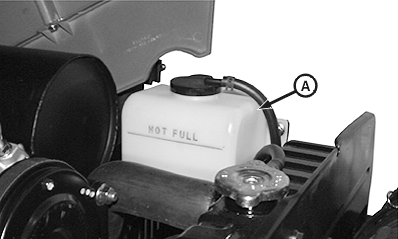

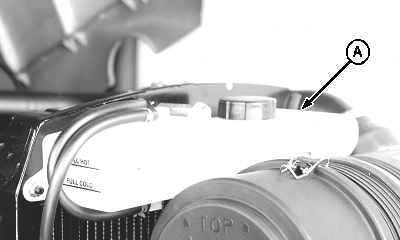

A-Coolant Recovery Tank

LV5434

5220 and 5320

LV1716

5420 and 5520

OUO1043,00001D0 -19-03NOV00-2/2
