Before Starting the Engine
TS220

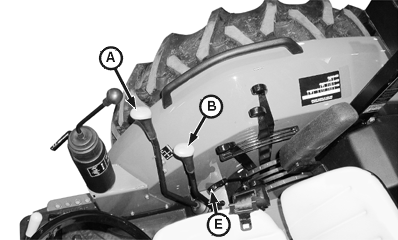

LV6356

CollarShift and SyncShuttle™ Transmissions-Straddle Mount Shown


A-Gear Shift Lever
B-Range Shift Lever
C-F-N-R Lever
D-PTO Control Lever
E-Rockshaft Position Control Lever

causym CAUTION: Prevent asphyxiation. Engine exhaust fumes can cause sickness or death to you or someone else.

If you must operate engine in a building, be positive there is adequate ventilation. Either use an exhaust pipe extension to remove the exhaust fumes or open doors and windows to bring enough outside air into the area.

1. Check fuel gauge to be sure tractor has plenty of fuel.

2. CollarShift or SyncShuttle ™ transmissions:

Place gear shift lever (A) in Neutral or Park, range shift lever (B) in Neutral, and PTO lever (D) in OFF positions. Starter will not operate if gear shift lever and PTO lever are not in these positions.

PowrReverser ™ transmission:

Place F-N-R lever (C) in Neutral or Park, gear shift lever (A) in Neutral, range shift lever (B) in Neutral, and PTO lever (D) in OFF positions. Starter will not operate if F-N-R lever and PTO lever are not in these positions.

3. Place rockshaft position control lever (E) in lower position.

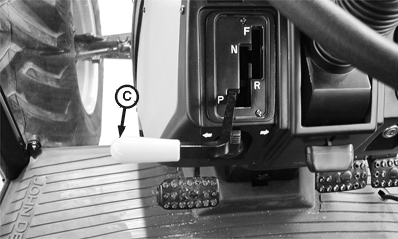

LV6354

PowrReverser™ Transmission-Cab Shown

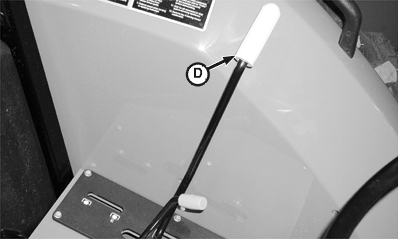

LV6355

Hi-Crop and Straddle Mount Shown

SyncShuttle is a trademark of Deere & Company.
PowrReverser is a trademark of Deere & Company.

OUO1043,00001D1 -19-28FEB02-1/2

4. Check indicator lights. Indicators should glow when key switch is turned to the ON position.

If any indicator does not function properly, see your John Deere dealer.

OUO1043,00001D1 -19-28FEB02-2/2
