Using Headlights

causym CAUTION: When operating on a road, move light switch to either bright or dim headlight position (A). Never use flood lights or fender lights when transporting. Bright lights could blind drivers of other vehicles as they approach.

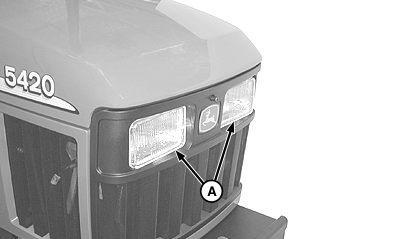

Dual-beam headlights (A) are switched on when the light switch is turned to flood light position (B), bright headlight position (C), or dim headlight position (D).

Always turn light switch to dim headlight position before meeting another vehicle.

Keep headlights adjusted properly. (See Adjusting Headlights in Service section).


A-Headlights
B-Flood Light Position
C-Bright Headlight Position
D-Dim Headlight Position

LV8402
LV5429

OUO1043,00001D2 -19-31JUL03-1/1
