Using Tail Lights

NOTE: Late model tractor lights shown. Early model tractor lights are similar.

Red tail light(s) (A) are switched on when the light switch is turned to the bright headlight position (B) or dim headlight position (C).

Be sure tail light lens(es) are clean before driving on a road, so other drivers can see it easily.

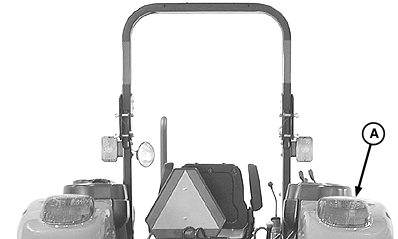

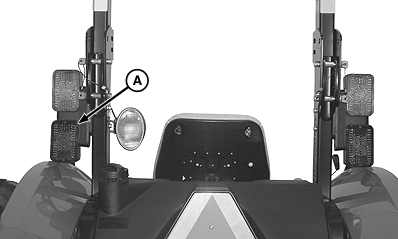

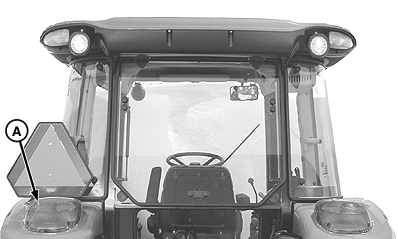

A-Red Tail Light

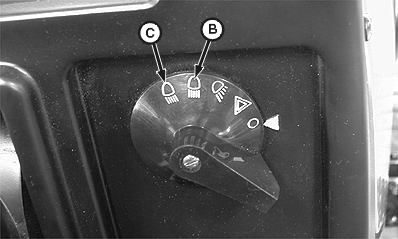

B-Bright Headlight Position
C-Dim Headlight Position

OUO1043,00001D4 -19-31JUL03-1/1
