Using Rear Flood Light (Straddle Mount, Isolated Open Operator Station and Hi-Crop)

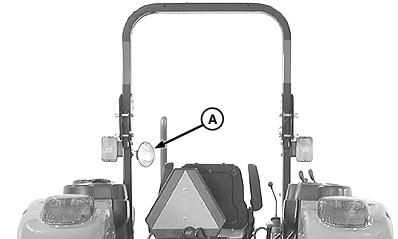

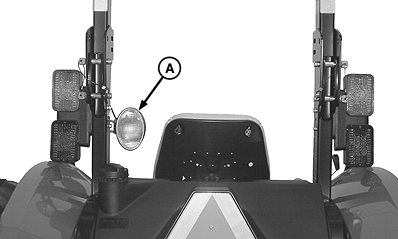

A-Rear Flood Light
B-Flood Light Position
C-Bright Headlight Position
D-Dim Headlight Position

NOTE: Late model tractor lights shown. Early model tractor lights are similar.

CAUTION: When operating on a road, move light switch to either bright headlight position (C) or dim headlight position (D). Never use flood light (A) when transporting. A clear, bright light at the rear of the tractor could confuse drivers of other vehicles as they approach from the rear.

Rear flood light (A) is switched on when the light switch is turned to the flood light position (B).

OUO1043,00001D6 -19-31JUL03-1/1
