Using Flood Lights (Cab)

NOTE: Late model tractor lights shown. Early model tractor lights are similar.

CAUTION: When operating on a road, move light switch to either bright headlight position (D) or dim headlight position (E). Never use flood lights when transporting. Clear, bright lights at the rear of the tractor could confuse drivers of other vehicles as they approach from the rear.

NOTE: Front and rear flood lights adjust freely by hand; up, down, left or right.

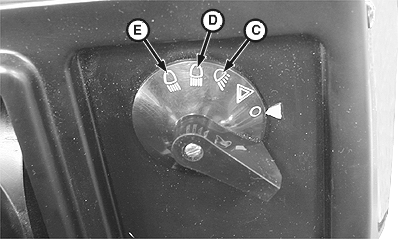

Both front flood lights (A) and rear flood lights (B) are switched on when the light switch is turned to the flood light position (C).

A-Front Flood Light (2 used)

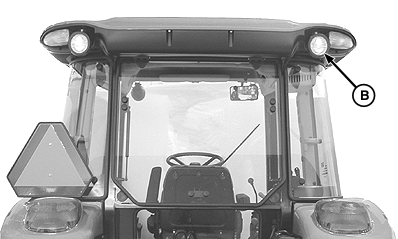

B-Rear Flood Light (2 used)
C-Flood Light Position
D-Bright Headlight Position
E-Dim Headlight Position

OUO1043,00001D8 -19-31JUL03-1/1
