Using Turn Signals (Straddle Mount and Hi-Crop)

NOTE: Late model tractor lights shown. Early model tractor lights are similar.

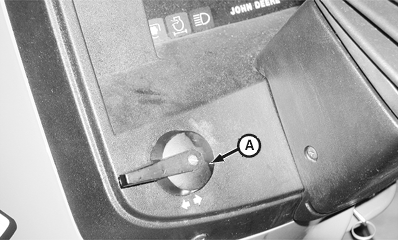

Move turn signal lever (A) down to indicate left-hand turn or up for right-hand turn. Indicator lights (F) will flash to signal turn direction.

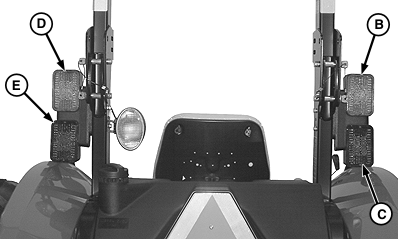

When lever is up, front and rear warning lights (B) and tail light (C) on right-hand side will flash while front and rear warning lights (D) and tail light (E) on left-hand side glow steady. Left-hand lights flash and right-hand lights glow steady when lever is down.

NOTE: Be sure to manually return lever to center position after turning.

A-Turn Signal Lever
B-Right-Hand Warning Lights
C-Right-Hand Tail Light
D-Left-Hand Warning Lights
E-Left-Hand Tail Light

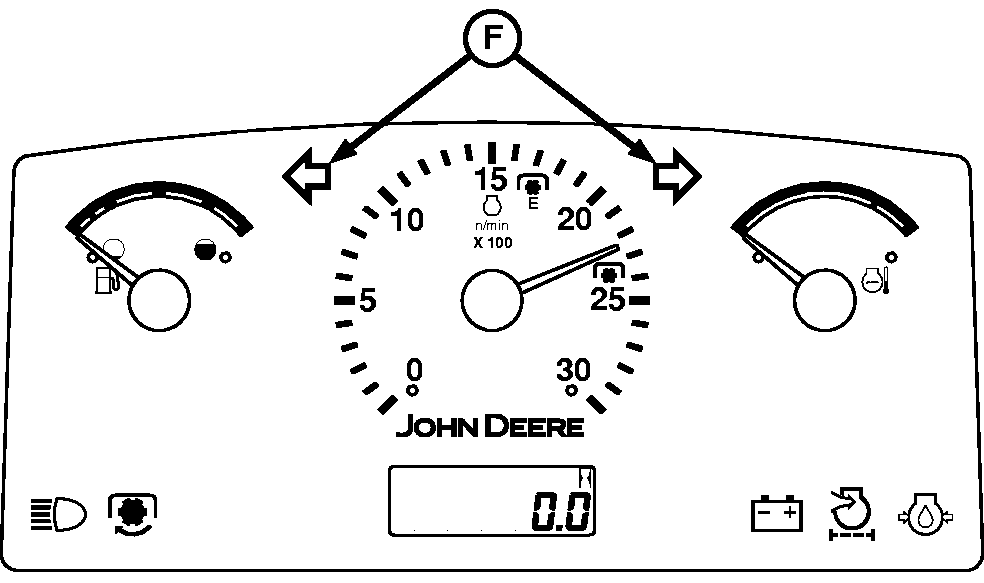

F-Turn Signal Direction Indicators

OUO1043,00001DA -19-31JUL03-1/1
