Using Turn Signals (Isolated Open Operator Station and Cab)

NOTE: Late model tractor lights shown. Early model tractor lights are similar.

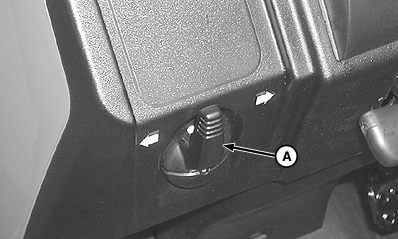

Move turn signal lever (A) left to indicate left-hand turn or right for right-hand turn. Indicator lights (F) will flash to signal turn direction.

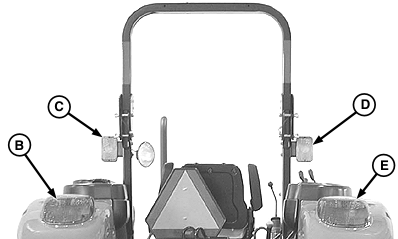

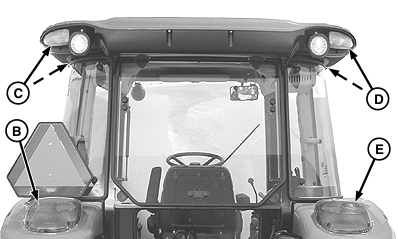

When lever is turned right, front and rear warning lights (D) and tail light (E) on right-hand side will flash while front and rear warning lights (C) and tail light (B) on left-hand side glow steady. Left-hand lights flash and right-hand lights glow steady when lever is turned left.

NOTE: Be sure to manually return lever to center position after turning.

A-Turn Signal Lever
B-Left-Hand Tail Light
C-Left-Hand Warning Lights
D-Right-Hand Warning Lights
E-Right-Hand Tail Light
F-Turn Signal Direction Indicators

OUO1043,00001DB -19-31JUL03-1/1
