Changing Engine Speeds (Straddle Mount and Hi-Crop)

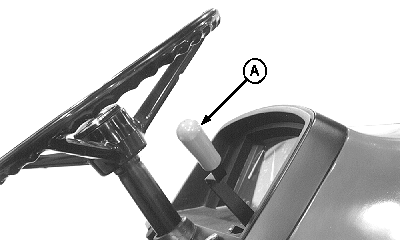

To increase speed, push hand throttle (A) forward.

A-Hand Throttle

OUO1043,00001DC -19-28FEB02-1/2

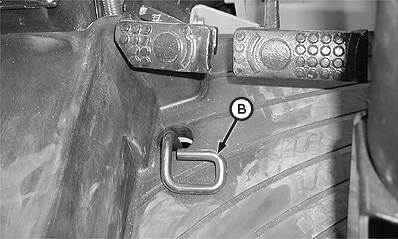

To temporarily increase engine speed above hand throttle setting, depress foot throttle (B).

B-Foot Throttle

OUO1043,00001DC -19-28FEB02-2/2
