Changing Engine Speeds (Cab and Isolated Open Operator Station)

To increase speed, push hand throttle (A) forward.


A-Hand Throttle

LV8427

OUO1043,00001DD -19-05AUG03-1/2

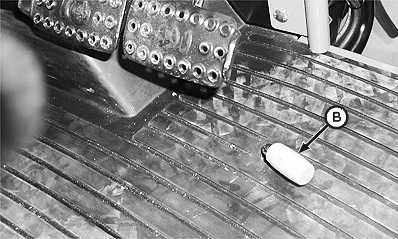

To temporarily increase engine speed above hand throttle setting, depress foot throttle (B).


B-Foot Throttle

LV5470

Foot Throttle-IOOS Shown; Cab Similar

OUO1043,00001DD -19-05AUG03-2/2
