Stopping the Engine

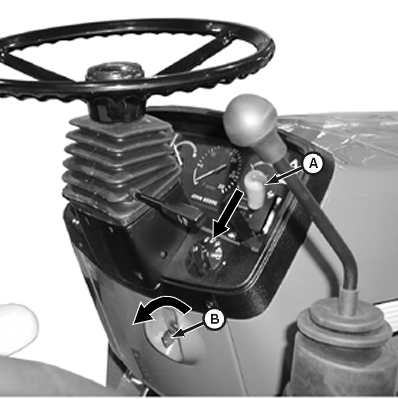

LV5475

Straddle Mount and Hi-Crop

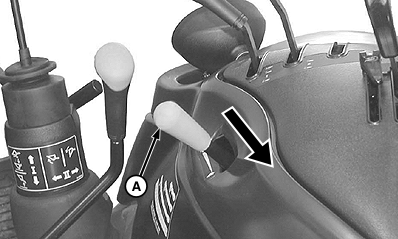

LV8429

IOOS Shown; Cab Similar


A-Hand Throttle



1. Pull hand throttle (A) back to slow idle position. Allow engine to idle for one to two minutes.

If engine is equipped with turbocharger, allow engine to idle for an additional one to three minutes.

OUO1043,00001DE -19-05AUG03-1/2

LV5475

Straddle Mount and Hi-Crop

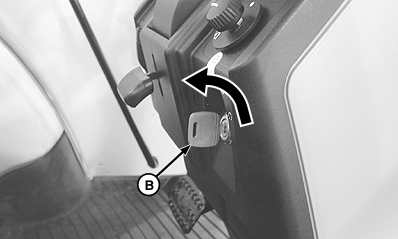

LV8499

Cab Shown; IOOS Similar

IMPORTANT: Cooling of certain engine parts is provided by engine oil. Stopping a hot engine suddenly could cause damage to these parts by overheating or lack of lubrication.

2. Turn key switch (B) to the STOP position (C).

causym CAUTION: Remove key from key switch to prevent operation by untrained personnel.


A-Hand Throttle
B-Key Switch
C-Stop Position

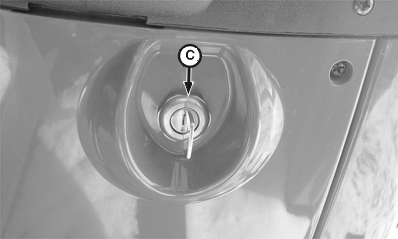

LV7203

Straddle Mount and Hi-Crop

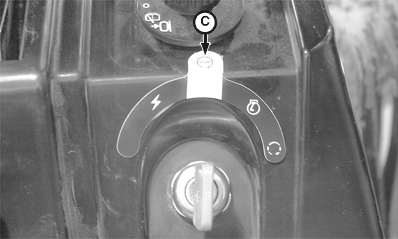

LV7204

Cab Shown; IOOS Similar

OUO1043,00001DE -19-05AUG03-2/2
