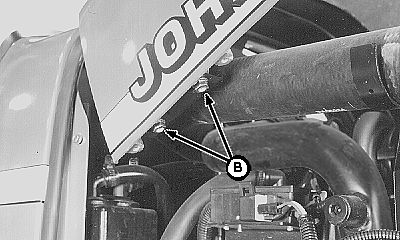

Removing Hood1. 5220 and 5320: Remove four cap screws and side panel (A), from each side of hood.5420 and 5520: Remove five cap screws and side panel (A), from each side of hood. 2. Remove nuts (B) from each side of the front hood hinge. 3. Release the hood support rod from the hood latch and secure the rod in the stored position. 4. Remove hood from tractor.
|
|
