Removing Side Screens

1. Raise the hood and secure the support rod.

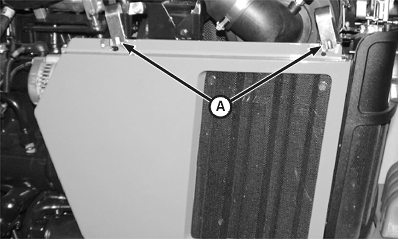

2. Turn side screen latch levers (A).

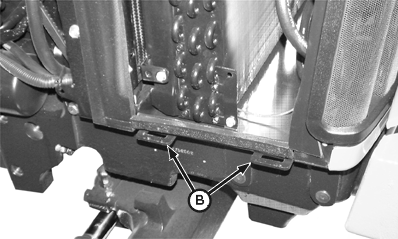

3. Tilt screen outward and lift from lower mounting slots (B).


A-Side Screen Latch Levers
B-Lower Mounting Slots

LV5485
LV5486

OUO1043,000023E -19-08JAN01-1/1
