Fuel System Components


A-FUELGARD Fuel Filter
B-Fuel Shut-Off Valve
C-Priming Pump
D-Bleed Screw
E-Electric Fuel Shut-Off
F-Fuel Injection Lines
G-Injection Pump

LV5518

5420 Shown; Other Tractors Similar

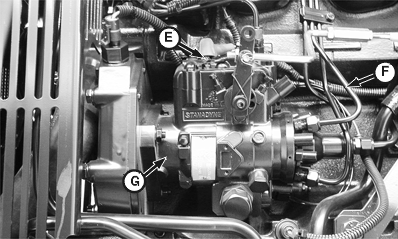

LV5517

5220 and 5320

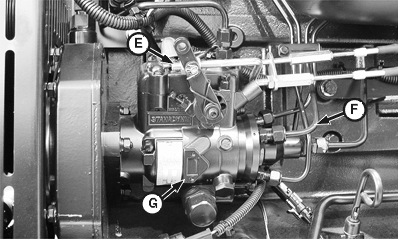

LV5516

5420 and 5520

OUO1043,0000242 -19-08JAN01-1/1
