Battery Access-Cab Machines

NOTE: Ensure step plate is properly secured after installing.

Battery is located under cab on left-hand side.

To gain access:

1. Remove hitch pins (A).

2. Lift step plate battery cover (B) and pull outward to access battery.

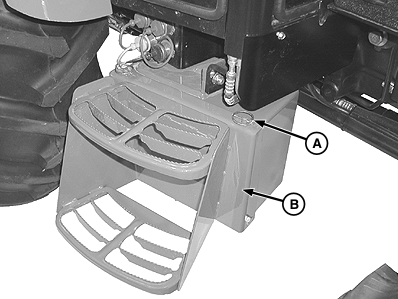

A-Hitch Pin (2 used)
B-Step Plate Battery Cover

LV8570

Tractor Right-Hand Side
