Removing Battery

CAUTION: To avoid sparks, disconnect negative (ground) cable first and connect it last.

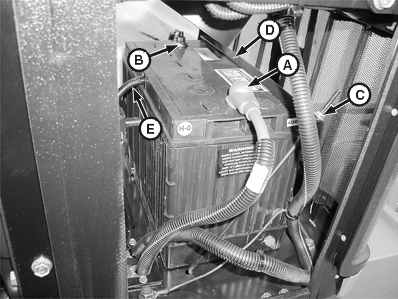

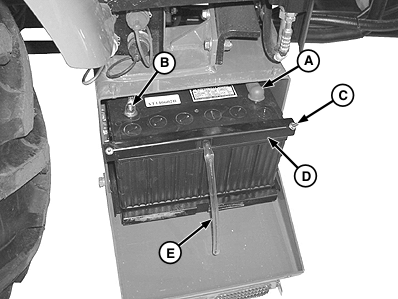

1. Remove nut retaining negative (ground) battery cable (B) and remove the cable connection. Then remove positive cable nut (A) and connection.

Straddle Mount: Loosen nuts (C) securing battery hold-down (D) and rotate the holder down, freeing the battery.

Cab: Remove vent tube (E), nuts (C) and battery hold-down (D).

2. Lift and slide the battery from the battery tray.

A-Positive (+) Cable Nut
B-Negative (-) Cable Nut
C-Nut
D-Battery Hold-Down
E-Vent Tube

OUO1043,0000249 -19-05AUG03-1/1
