Connecting Starter Wiring

NOTE: 5220 and 5320 shown; 5420 and 5520 similar.

IMPORTANT: Disconnect battery negative (ground) cable before servicing any part of electrical system. Make all other connections before connecting ground cable.

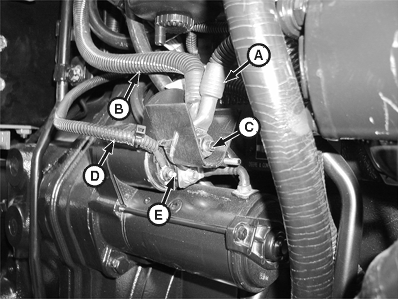

Connect large battery cable (A) and alternator cable (B) to large solenoid post (C). Connect the small white wire (D) to solenoid terminal (E).

A-Large Battery Cable
B-Alternator Cable
C-Large Solenoid Post
D-Small White Wire
E-Solenoid Terminal
