Replace Warning Light Bulb (Straddle Mount, Hi-Crop and Isolated Open Operator Station)

NOTE: Late model tractor shown. Early model tractor is similar.

Bulb replacement procedure for straddle mount and isolated open operator station warning lights is the same. Rear left side of IOOS shown.

1. Remove lens screws (A) and warning light lens (B) from warning light housing.

2. Push in and twist warning light bulb (C) to remove from socket.

3. Replace warning light bulb.

4. Install warning light lens and lens screws to warning light housing.


A-Lens Screw (2 used)
B-Warning Light Lens
C-Warning Light Bulb

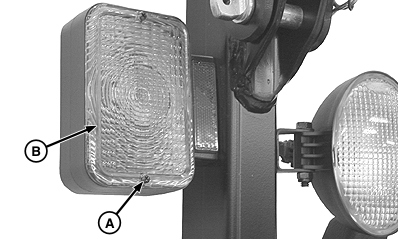

LV8581

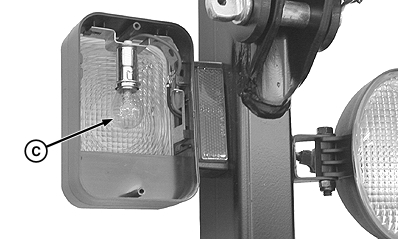

LV8582

OUO1043,0000251 -19-14NOV03-1/1
