Replace Warning Light Bulb (Cab)

NOTE: Bulb replacement procedures for front and rear warning lights are the same. Rear left side warning light shown.

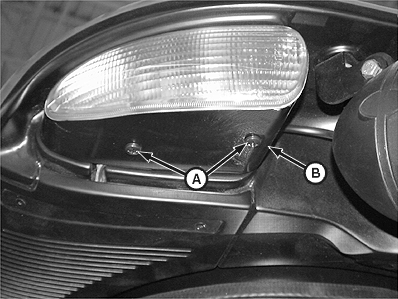

1. Remove warning light mounting screws (A) securing warning light housing (B) to cab roof.

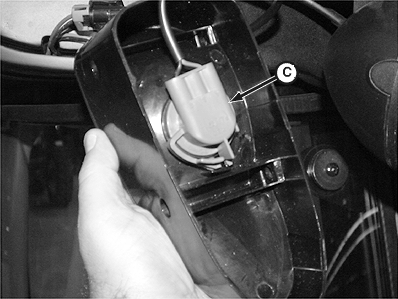

2. Remove warning light bulb and socket (C) from housing.

3. Pull warning light bulb from socket.

4. Replace warning light bulb.

5. Install warning light bulb and socket into housing.

6. Install warning light housing and screws to cab roof.


A-Warning Light Mounting Screw (2 used)
B-Warning Light Housing
C-Warning Light Bulb and Socket

LV5559
LV5560

OUO1043,0000252 -19-10JAN01-1/1
