Replace Tail Light Bulb (Cab and Isolated Open Operator Station)

NOTE: Late model tractor shown. Early model tractor is similar.

NOTE: Cab left side tail light shown. Procedure for right side tail light is the same.

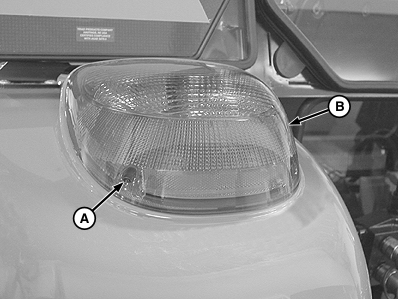

1. Remove tail light screws (A).

2. Pull tail light housing (B) away from fender.

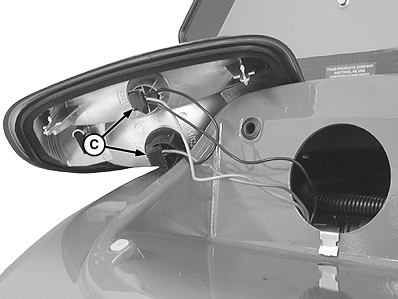

3. Rotate tail light socket (C) and remove from tail light housing.

4. Pull tail light bulb to remove from socket. Replace bulb.

5. Install tail light bulb and socket in tail light housing.

6. Install tail light housing and tail light screws to fender.

A-Tail Light Screw (2 used)
B-Tail Light Housing
C-Tail Light Socket (2 used)

OUO1043,0000253 -19-14NOV03-1/1
