Replace Tail Light Bulb (Straddle Mount and Hi-Crop)

NOTE: Late model tractor shown. Early model tractor is similar.

Left side tail light is shown. Procedure for right side tail light is the same.

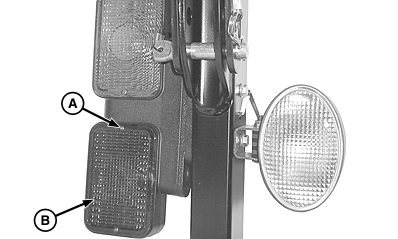

1. Remove tail light screws (A) and tail light lens (B).

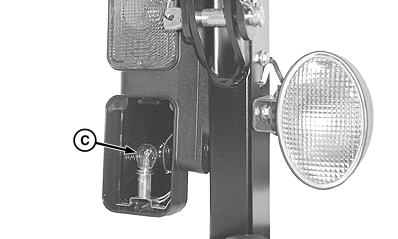

2. Push and twist tail light bulb (C) to remove from socket. Replace bulb.

3. Install tail light lens and tail light screws.

A-Tail Light Screw (2 used)
B-Tail Light Lens
C-Tail Light Bulb

OUO1043,0000254 -19-14NOV03-1/1
