Replace Flood Light Bulb-Early Model Tractor (Straddle Mount, Hi-Crop and Isolated Open Operator Station)

1. Loosen mounting cap screw and rotate flood light outward to access flood light retainer screw (A). Remove screw.

2. Remove flood light bulb retainer (B) and flood light from housing.

3. Disconnect wiring harness connector (C) from flood light bulb (D).

4. Rotate flood light bulb counterclockwise and remove from flood light reflector (E). Replace flood light bulb.

5. Install flood light bulb into flood light reflector and rotate clockwise.

6. Install flood light, flood light retainer and flood light screw.


A-Flood Light Retainer Screw
B-Flood Light Bulb Retainer
C-Wiring Harness Connector
D-Flood Light Bulb
E-Flood Light Reflector

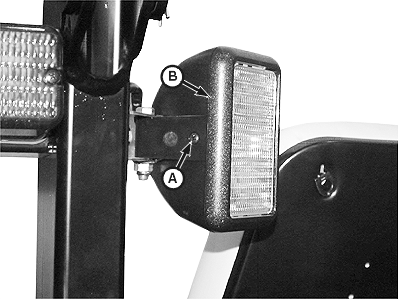

LV5567

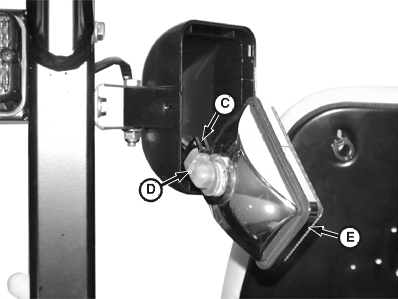

LV5568

OUO1043,0000255 -19-14NOV03-1/1
