Replace Flood Light Bulb (Cab)

NOTE: Bulb replacement procedures for front and rear flood lights are the same. Rear left side flood light shown.

1. Remove screw cover by prying in screw cover slot (A) with a screwdriver.

2. Remove retaining ring screws (B), retaining ring (C) and flood light bulb (E) from flood light housing.

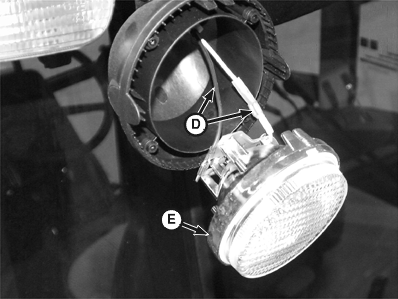

3. Disconnect wiring connectors (D) from flood light bulb. Replace bulb.

4. Connect wiring connectors to flood light bulb.

5. Install flood light bulb, retaining ring, and retaining ring screws.

6. Install screw cover.


A-Screw Cover Slot
B-Retaining Ring Screw (4 used)
C-Retaining Ring
D-Wiring Connector (2 used)
E-Flood Light Bulb
