Replace Dome Light Bulb (Cab)

NOTE: Late model tractor shown. Early model tractor is similar.

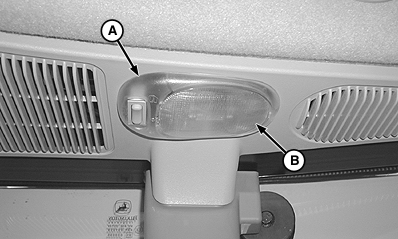

1. Remove dome light cover (B) from dome light housing (A) using a screwdriver.

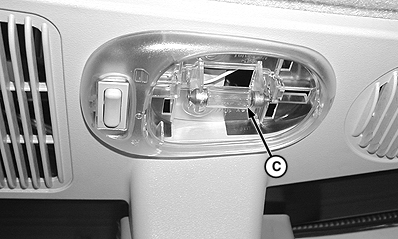

2. Pull dome light bulb (C) from socket. Replace dome light bulb.

3. Install dome light cover to dome light housing.


A-Dome Light Housing
B-Dome Light Cover
C-Dome Light Bulb

LV8588
LV8587

OUO1043,0000258 -19-05AUG03-1/1
