Driving on Public Roads

NOTE: Late model tractor lights shown. Early model tractor lights are similar.

causym CAUTION: When transporting on a public road or highway, use warning lights and devices for adequate warning to operators of other vehicles. Check local governmental regulations. Various safety devices are available from your John Deere dealer. Keep safety items in good condition. Replace missing or damaged items.

Observe the following precautions when operating the tractor on the road:

causym CAUTION: Before operating tractor on a road, lock brake pedals together. Use brake lightly and cautiously at transport speeds.

1. Couple brake pedals together using brake locking bar (A). Avoid hard applications of brakes. Reduce speed if towed load weighs more than the tractor and is not equipped with brakes. (Consult implement operator's manual for recommended transport speeds).

Use additional caution when transporting towed loads under adverse surface conditions and when turning or braking on inclines. Be sure wheel tread is adjusted wide to provide maximum stability.

IMPORTANT: To prevent unnecessary wear, never ride the brakes by resting a foot on the pedals.

LV6050

Straddle Mount and Hi-Crop Shown; Other Tractors Similar


A-Brake Locking Bar

OUO1043,0000266 -19-05AUG03-1/2

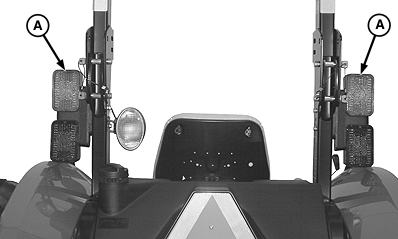

LV8622

Straddle Mount and Hi-Crop
LV8506

IOOS

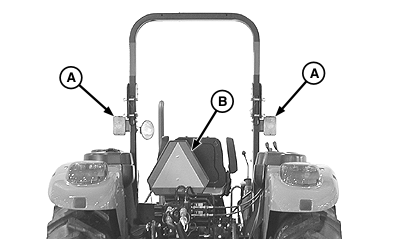

2. Check local laws and regulations for lighting requirements. Be sure Slow Moving Vehicle (SMV) emblem (B) and warning lights (A) are clean and visible. If towed or rear-mounted equipment obstructs these safety devices, install SMV emblem and warning lights on equipment. (See your John Deere dealer.)

A seven-terminal outlet at rear of tractor supplies power to warning lights on towed or rear-mounted equipment. (See description of outlet in Lights section.)

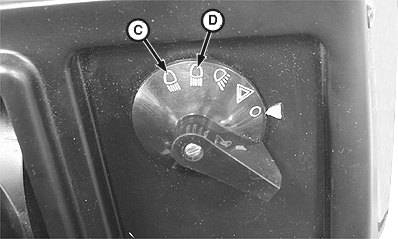

3. Turn light switch to position (D).

Always turn light switch to dim lights position (C) when meeting another vehicle. Never use flood lights or any lights which could blind or confuse other drivers.

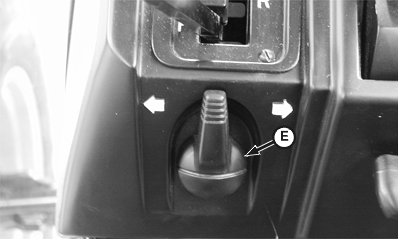

4. Use turn signal when turning. Be sure to return lever (E) to center position after turning.

5. Drive slowly enough to maintain safe control at all times. Before descending a hill, shift to a gear low enough to control speed without using brakes. Slow down for rough ground and sharp turns, especially when transporting heavy, rear-mounted equipment.

6. To reduce tire wear, be sure to disengage front-wheel drive (if equipped).


A-Warning Lights
B-SMV Emblem
C-Dim Headlight Switch Position
D-Bright Headlight Switch Position
E-Turn Signal Lever

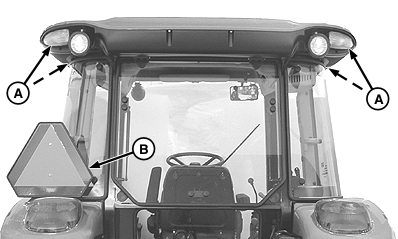

LV8507

Cab

LV6054
LV6049

OUO1043,0000266 -19-05AUG03-2/2
