Shifting CollarShift Transmission

IMPORTANT: To prevent transmission damage, do not shift on-the-go. To prevent unnecessary wear, never "ride" the clutch by resting a foot on the pedal.

Depress clutch pedal (A) and stop tractor before shifting either range shift lever or gear shift lever. Release clutch pedal gradually to take up load smoothly.

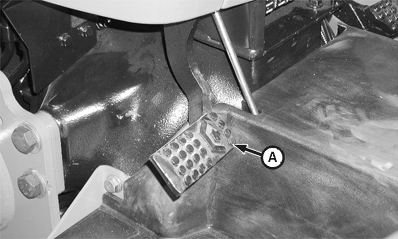

A-Clutch Pedal

LV6055

Straddle Mount and Hi-Crop Shown; Other Tractors Similar

OUO1043,0000268 -19-28FEB02-1/1
