Shifting SyncShuttle™ Transmission

IMPORTANT: To prevent unnecessary wear, never "ride" the clutch by resting a foot on the pedal.

Depress clutch pedal (A) and stop tractor before shifting the range shift lever (C).

Depress clutch pedal before shifting the gear shift lever (B). Gear shifts (1, 2, 3) and direction shifts (forward, reverse) can be made on-the-go. Release clutch pedal gradually to take up load smoothly.


A-Clutch Pedal
B-Gear Shift Lever
C-Range Shift Lever

LV6055

Straddle Mount and Hi-Crop Shown; Other Tractors Similar

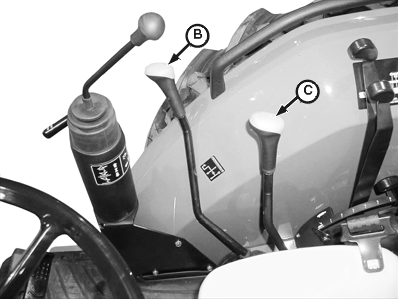

LV6057

Straddle Mount and Hi-Crop Shown; Other Tractors Similar

OUO1043,0000269 -19-28FEB02-1/1
