Operating PowrReverser™ Transmission

CAUTION: Always place transmission range lever in neutral (N) position and F-N-R lever in park position before dismounting as indicated in the warning label as shown. Leaving transmission in gear with engine stopped WILL NOT prevent tractor from moving.

F-N-R lever (A) is used to select travel direction (forward or reverse) and to place tractor into park. F-N-R lever must be in park or neutral for engine to start.

Gear shift lever (B) provides four forward travel speeds.

Range shift lever (C) provides three speed ranges, A, B, and C.

Slow speed gearing (creeper) is available as an option, providing for a fourth speed range. See Creeper Gear Operation in this section for further information.

Using range and gear shift levers in different combinations, twelve forward and reverse speeds can be obtained.

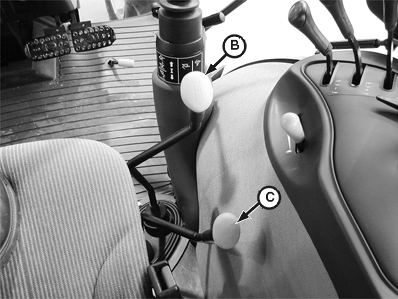

A-F-N-R Lever
B-Gear Shift Lever
C-Range Shift Lever

OUO1043,000026A -19-17OCT03-1/1
