Stopping Tractor with CollarShift or SyncShuttle™ Transmission

CAUTION: Always place the gear shift lever in park (P) before dismounting. Leaving transmission in gear with engine off WILL NOT prevent tractor from moving.

IMPORTANT: Tractor must be stopped before placing gear shift lever in park. Park pawl will not engage, and transmission may be damaged if tractor is moving.

1. Stop the tractor and place gear shift lever (A) in park.

2. Lower all equipment to ground using rockshaft control lever (B).

3. Pull hand throttle (C) back to slow idle position. Allow engine to idle for one to two minutes.

IMPORTANT: Cooling of certain engine parts is provided by engine oil. Stopping a hot engine suddenly could cause damage to these parts by overheating or lack of lubrication.

CAUTION: Remove the key from key switch to prevent operation by untrained personnel.

4. Turn key switch to the OFF position.

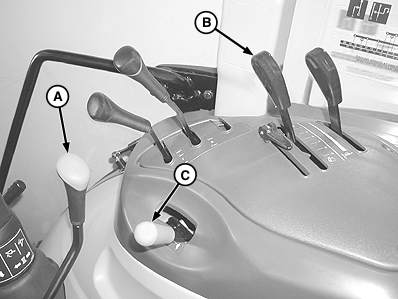

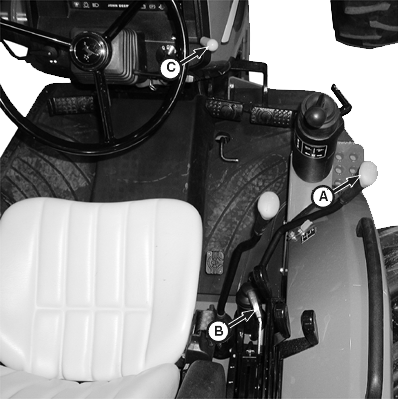

A-Gear Shift Lever
B-Rockshaft Control Lever
C-Hand Throttle

OUO1043,0000271 -19-05AUG03-1/1
