Fill Fuel Tank

causym CAUTION: Handle fuel with care: It is highly flammable. DO NOT refuel the machine while smoking or when near open flame or sparks.

Always stop engine before refueling machine. Fill fuel tank outdoors.

Prevent fires by keeping machine clean of accumulated trash, grease and debris. Always clean up spilled fuel.

Fill fuel tank at end of each day's operation. This prevents condensation in tank as moist air cools.

Specification

5220, 5320 and 5420 Straddle Mount (Early Model) -Capacity 68 L (18 gal) Approximate
5520 Straddle Mount (Early Model) -Capacity 83 L (22 gal) Approximate
5220, 5320 and 5420 Straddle Mount (Late Model) -Capacity 77 L (20 gal) Approximate
5520 Straddle Mount (Late Model) -Capacity 93 L (25 gal) Approximate
IOOS-Small Filler Neck -Capacity 102 L (27 gal) Approximate
IOOS-Large Filler Neck -Capacity 112 L (29.5 gal) Approximate
Cab-Small Filler Neck -Capacity 102 L (27 gal) Approximate
Cab-Large Filler Neck -Capacity 112 L (29.5 gal) Approximate

IMPORTANT: The fuel tank uses a vented filler cap. If a new filler cap is required, always replace it with a vented cap.

NOTE: To reduce fuel gelling and control wax separation during cold weather, John Deere Fuel Flow Improver, or equivalent, may be added to fuel or bulk storage tank.

TS202
LV8961

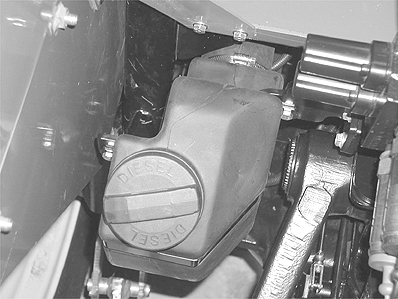

Small Filler Neck

LV8960

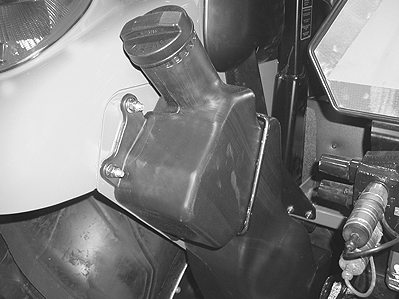

Large Filler Neck
