Rockshaft Control Levers

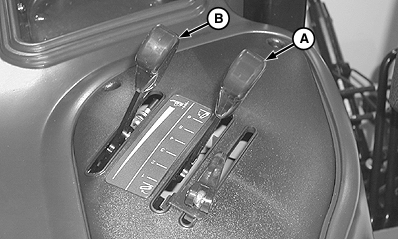

The rockshaft position is controlled by two levers, the position control lever (A) and the draft control lever (B).

The position control lever (A) raises the hitch when pulled rearward, and lowers the hitch when moved forward. See Using Rockshaft Position Control in this section for more information.

The draft control lever (B) controls hitch position relative to draft loads. See Using Draft Control in this section for more information.

A-Rockshaft Position Control Lever
B-Rockshaft Draft Control Lever

OUO1043,0000279 -19-05AUG03-1/1
