Leveling the Hitch

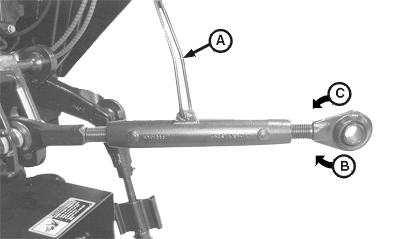

2. Adjust center link to level implement front-to-rear. Unlatch locking clip (A). Rotate center link body clockwise (B) to lengthen center link or counterclockwise (C) to shorten it. Be sure to latch the locking clip.

IMPORTANT: DO NOT attempt to overextend center link beyond limits of locking clip or lift links past the stops. Link body threads could be damaged.

NOTE: Maximum adjustment range of the center link can only be obtained if the ends are positioned equally within the body when attached to an implement.

A-Locking Clip
B-Center Link Clockwise Rotation
C-Center Link Counterclockwise Rotation

OUO1043,0000280 -19-18JAN01-1/2

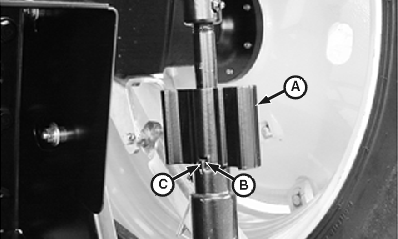

Turn locking handle (A) clockwise to raise draft link.

Turn locking handle (A) counterclockwise to lower draft link.

After adjustment, lift handle (A) and turn to engage slot (B) onto locking tab (C) of lower body to prevent change of adjustment during operation.

4. The left-hand lift link is also adjustable in length to accommodate two different length right-hand lift link assemblies used, depending on tire size. The following adjustments will provide optimum hitch leveling:

If equipped with a right-hand lift link, center threaded section measures 316 mm (12-7/16 in.) long. Adjust the left-hand lift link to 550 mm (21-5/8 in.) from pin to pin (lateral float locked out).

If equipped with a right-hand lift link, center threaded section measures 266 mm (10-1/2 in.) long. Shorten the left-hand lift link to 450 mm (17-7/16 in.).

To change the left-hand lift link length, remove the upper lift link pin and rotate the upper end assembly clockwise to shorten or counterclockwise to lengthen, and then reinstall the upper pin and locking pin.

A-Locking Handle
B-Slot
C-Locking Tab

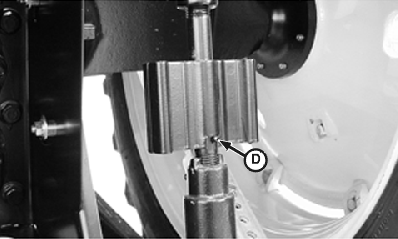

D-Roll Pin

OUO1043,0000280 -19-18JAN01-2/2
