Selecting Drawbar Position

IMPORTANT: For drawn PTO-driven implements, drawbar must be in the long position (as shown) to provide 355 mm (14 in.) between drawbar hitch hole (A or B) and end of PTO shaft.

For maximum traction and efficiency, drawbar should be positioned in the center, short position. (See implement operator's manual for more information.)


A-Drawbar Hitch Hole (Early Model Tractors)
B-Drawbar Hitch Hole (Later Model Tractors)

LV6106

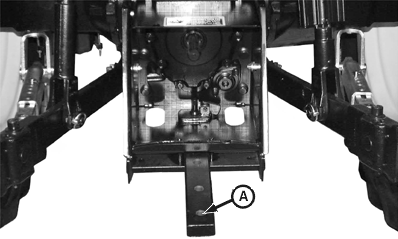

Drawbar Long Position Shown (Early Model Tractors)

LV9345

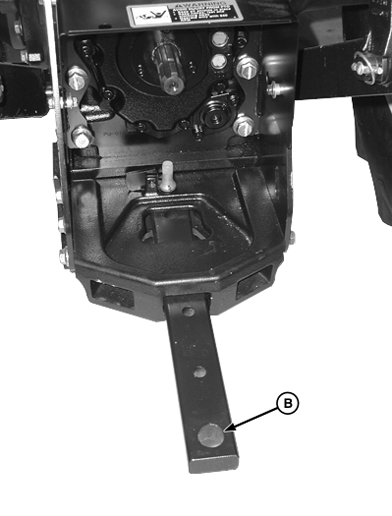

Drawbar Long Position Shown (Later Model Tractors)
