Lift drawbar pin retaining latch (A). Remove drawbar pin (B). Slide drawbar to desired position. Install drawbar pin and rotate latch to secure drawbar pin.

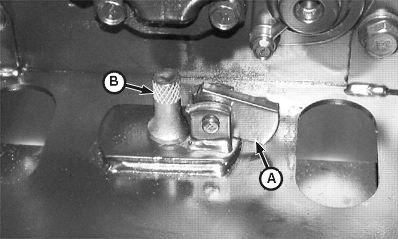

A-Drawbar Pin Retaining Latch B-Drawbar Pin
OUO1043,0000282 -19-23JAN01-1/1
