Selecting Correct PTO Speeds (SyncShuttle™ Transmission Only)-If Equipped

For standard PTO operation (load requiring full engine power), pull lever (A) back to 540 position.

For economical PTO operation (lighter load), push lever forward to 540E position. In economical mode, engine is run at lower rpm to conserve fuel while still turning PTO shaft at 540 rpm.

NOTE: With the PTO shift lever in 540E position, engine fast idle speed above 1900 rpm (no load) or 1700 rpm (loaded) cannot be obtained with either the hand or foot throttle.

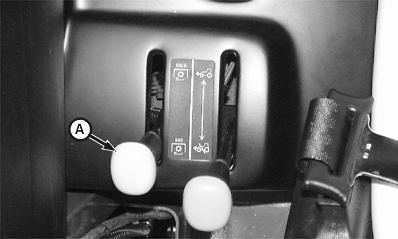

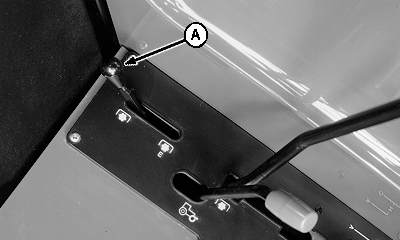

A-PTO Shift Lever

OUO1043,0000285 -19-28FEB02-1/1
