Drain Water and Sediment from Fuel Tank and Fuel Filter

NOTE: Fuel tank drain plug located at rear of tractor on straddle mount tractors and behind left rear tire on cab and isolated open operator station tractors. Place a small container under drain fitting to catch draining fuel. Dispose of waste properly.

1. Open fuel tank drain plug (A) to bleed accumulated moisture and sediment from the fuel tank. Tighten plug closed when clear fuel runs from fitting.

2. Open fuel filter drain (B) to bleed accumulated moisture and sediment from filter. Tighten drain when clear fuel runs from drain.

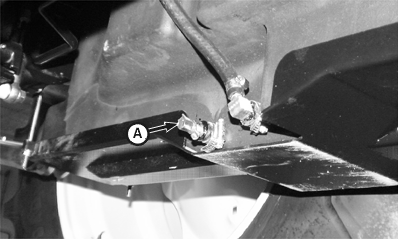

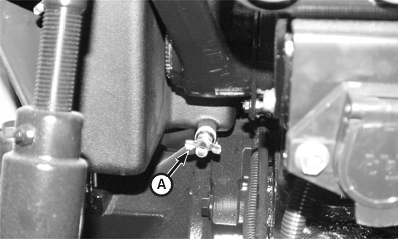

A-Fuel Tank Drain Plug
B-Fuel Filter Drain

OUO1043,0000292 -19-05AUG03-1/1
