Lubricate Steering Spindles (Adjustable Front Axle)

On tractors equipped with adjustable front axle, apply several shots of general purpose grease (see Fuels, Lubricants and Coolant section) to adjustable front axle steering spindle zerks (A).


A-Adjustable Front Axle Steering Spindle Zerk (2 used)

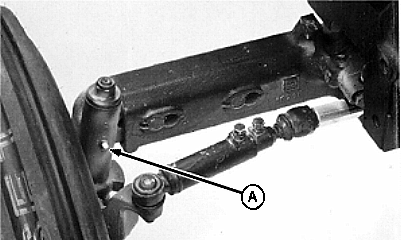

LV1976

Early Model Shown

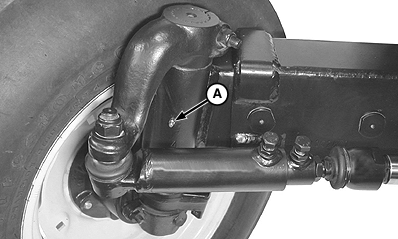

LV8953

Late Model Shown

OUO1043,0000297 -19-18NOV03-1/1
